Project Title: Spring-Loaded Bowl Mechanical Assembly – 3D CAD Design
Introduction
3D CAD Design plays a vital role in the development of precision mechanical systems. This project presents a detailed 3D CAD model of a spring-loaded mechanical assembly featuring a bowl-shaped upper component, designed for controlled movement, stability, and mechanical responsiveness.
Project Overview

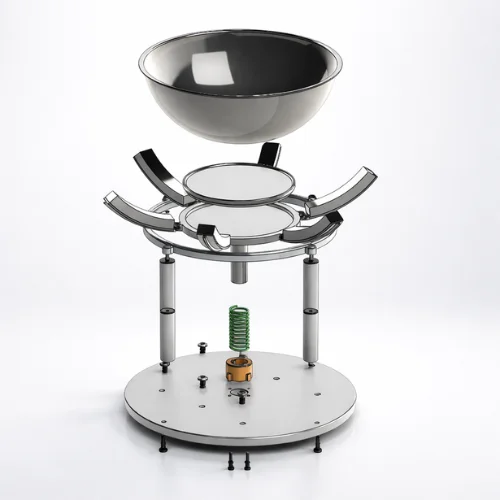

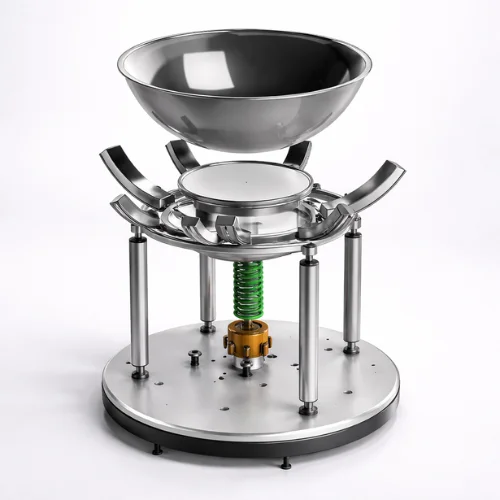

This project focuses on the complete 3D CAD design of a vertically aligned mechanical assembly incorporating a compression spring, support columns, mounting plates, and a detachable bowl structure. The design ensures accurate alignment, smooth vertical motion, and structural balance, making it suitable for functional prototyping and industrial applications.
Features and Specifications
- Precision Mechanical Modeling: Accurate dimensions and tolerances for smooth assembly and operation.
- Spring-Loaded Mechanism: Central compression spring designed for controlled force absorption and motion.
- Modular Bowl Assembly: Detachable bowl component for easy installation and maintenance.
- Structural Support Columns: Vertical guide rods ensure stability and alignment.
- Manufacturing Ready: Design optimized for CNC machining and mechanical assembly.
Design Process
The design process begins with functional requirement analysis, focusing on load handling, motion control, and system stability. Individual components are modeled separately and assembled digitally to verify alignment, clearance, and structural integrity. Multiple design iterations are carried out to improve performance and manufacturability before final validation.
